DINASAW FULLY MANUAL CHAIN SHARPENER HANDI-REX

SKU CSSHANDIREX
C$2 595.00
In stock
1
Product Details

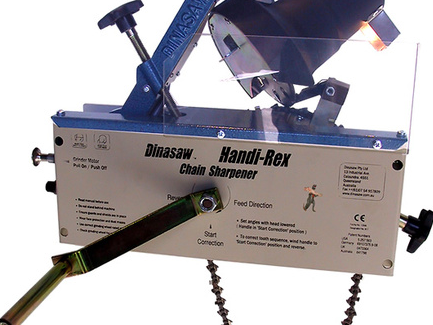

Handi-REX Chain Sharpener

This machine has all the features of the T-REX without the electronic control system. Simply turn the handle, and the Handi-Rex will sharpen all chain cutters, both left and right in the one pass. Any top plate angle from 0° to 35°. Irregular chains (i.e. chains with 2 left or right cutters in succession) can be easily sharpened. All the efficiencies of the T-REX are built into the Handi-Rex.

  • Speed Manual (up to 40 cutters per minute).
  • Accuracy (cam operated feed).
  • Cool Grinding.
  • Versatile (most chain styles and sizes)
  • Value for Money.
  1. Specifications

Model

Handi-Rex T-REX
Chain Size (pitch) Min 1/4" 1/4"
Max 3/4" 3/4"
Chain Length Unlimited Unlimited
Chain Type Standard & Chisel Standard & Chisel
"Scratcher" Chain Yes Yes
Feed Speed 30 Cpm* / Variable 30 Cpm*
Grind Angles Top Plate 0° to 35° / Variable 0° to 35° / Variable
Side Plate 0° to 38° / Variable 0° to 38° / Variable
Grinding Wheel Diameter 125mm (5") 125mm (5")
Thickness 3,4,5,8mm (1/8",5/32",3/16",5/16") 3,4,5,8mm (1/8",5/32",3/16",5/16")
Type Resin Bonded (opt. Diamond/ABN**) Resin Bonded (opt. Diamond/ABN**)
Speed 6500 Rpm 6500 Rpm
Power Std. 12 - 14 VDC - 12 amp 12 - 14 VDC - 12 amp
Opt. 240 / 110 VAC Converter 240 / 110 VAC Converter
Weight 18kg (40lbs) 22kg (48lbs)
Volume ( Packed) 0.06m3 (0.9ft3) 0.06m3 (0.9ft3)

* Cutters per minute ** Cubic Boron Nitride

This Machine is a special order and takes 3-4 weeks to ship
